Configure SAML 2.0

UIGraph acts as a SAML 2.0 service provider (SP). Each SAML provider belongs to one organization and has its own entity ID, assertion consumer service (ACS) URL, metadata URL, certificate, and attribute mappings.

UIGraph supports SP-initiated login. Users start from the UIGraph sign-in screen, and UIGraph sends an AuthnRequest to the identity provider (IdP).

Prerequisites

Before creating the provider, confirm that:

• UIGRAPH_PUBLIC_URL is the externally reachable HTTPS base URL.
• The API's general UIGRAPH_SECRET_KEY is configured so the generated SP private key can be encrypted.
• You are an administrator of the UIGraph organization.
• You can create a SAML application at the IdP.
• You have a test user with a stable email address.
• You retain a working password-admin session while testing.

Changing UIGRAPH_PUBLIC_URL after setup changes the generated entity ID, ACS URL, and metadata URL. Update the IdP application whenever this URL changes.

Create the UIGraph provider

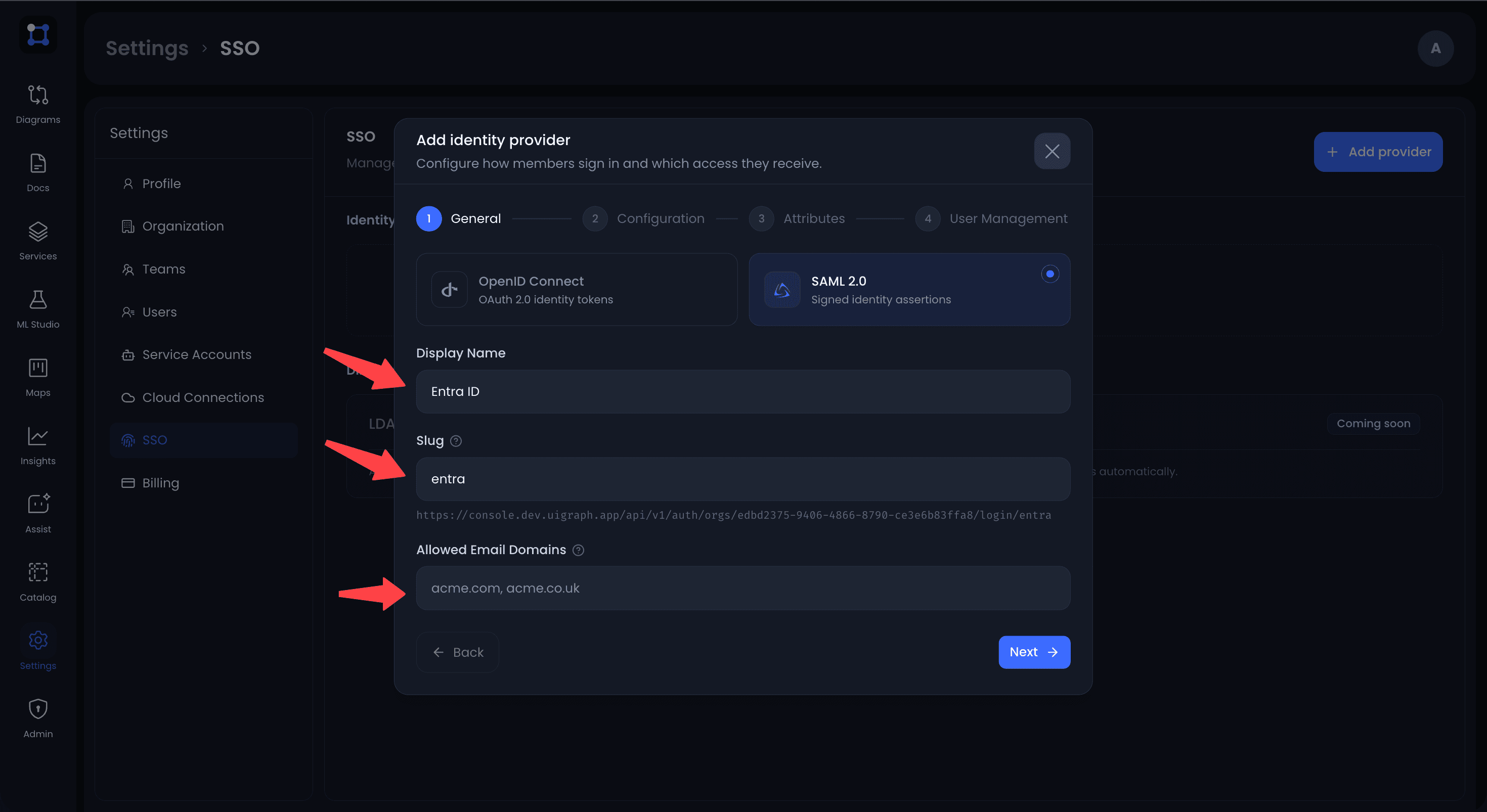

1. Open Settings > SSO in the target organization.
2. Select Add provider.
3. Choose SAML 2.0.
4. Enter a unique provider slug and display name.
5. Save the provider.

The slug must be 2 to 63 characters and use only lowercase letters, digits, and single hyphens. It cannot be changed later.

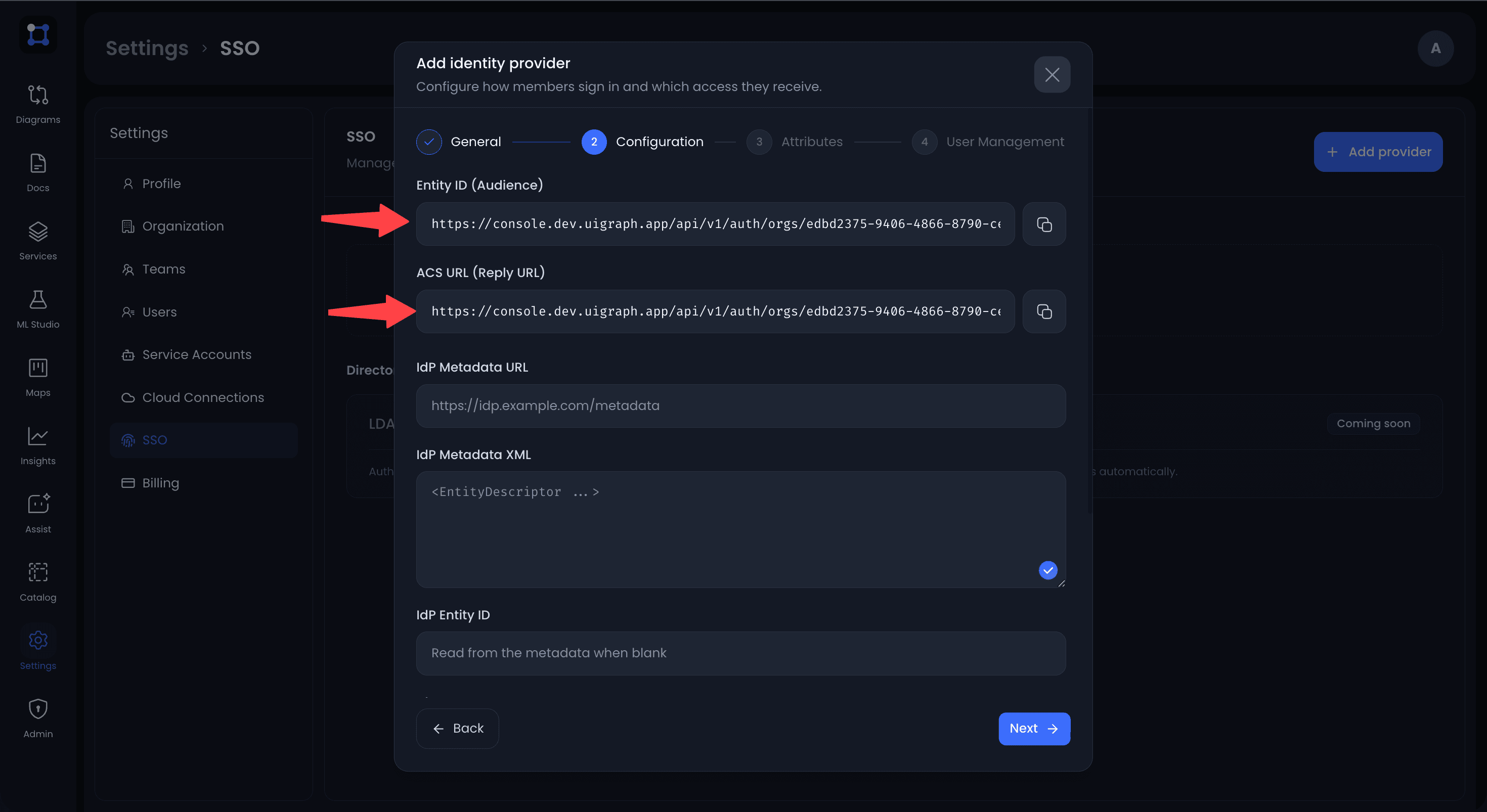

After creation, open the provider's Configuration tab. UIGraph displays the exact values required by the IdP:

UIGraph value	Common IdP label
Entity ID	Audience, SP entity ID, Identifier
ACS URL	Reply URL, Single sign-on URL, Consumer URL
Metadata URL	SP metadata URL

The URLs include both the organization ID and provider slug:

Entity ID:   ${UIGRAPH_PUBLIC_URL}/api/v1/auth/orgs/<orgID>/saml/<slug>/metadata
ACS URL:     ${UIGRAPH_PUBLIC_URL}/api/v1/auth/orgs/<orgID>/saml/<slug>/acs
Metadata:    ${UIGRAPH_PUBLIC_URL}/api/v1/auth/orgs/<orgID>/saml/<slug>/metadata

The entity ID and metadata URL are currently the same URL.

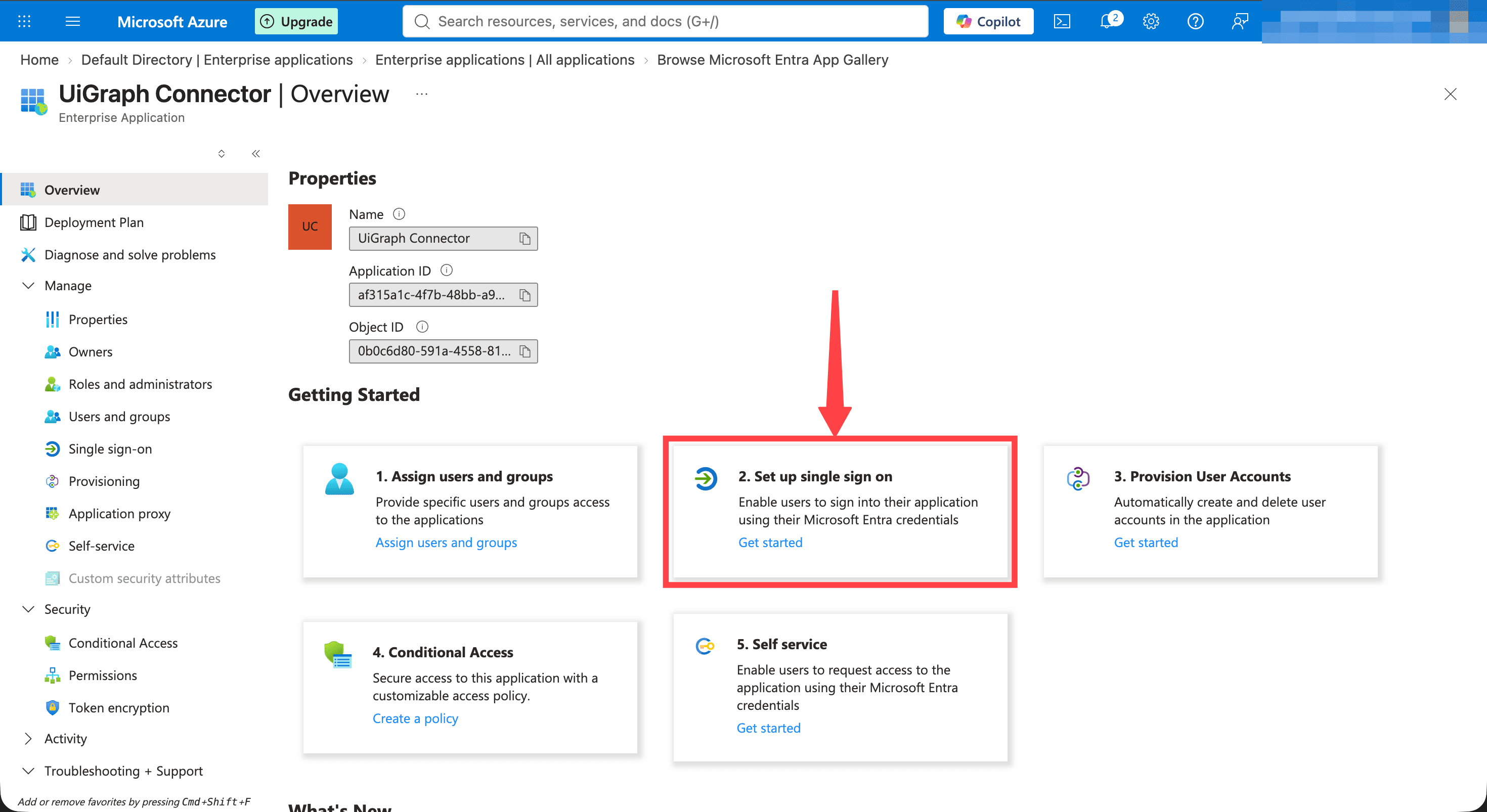

Configure the IdP application

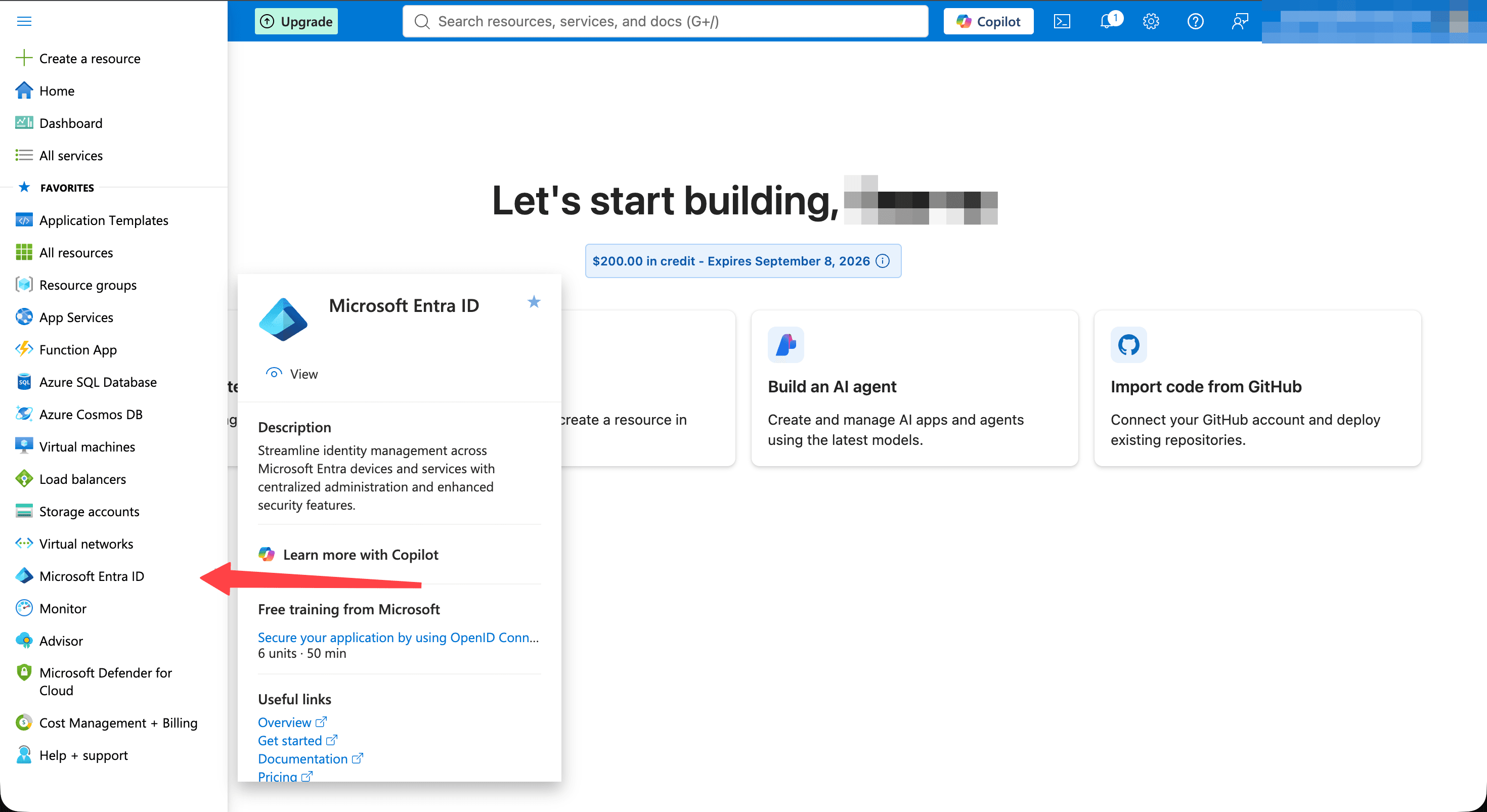

At the IdP:

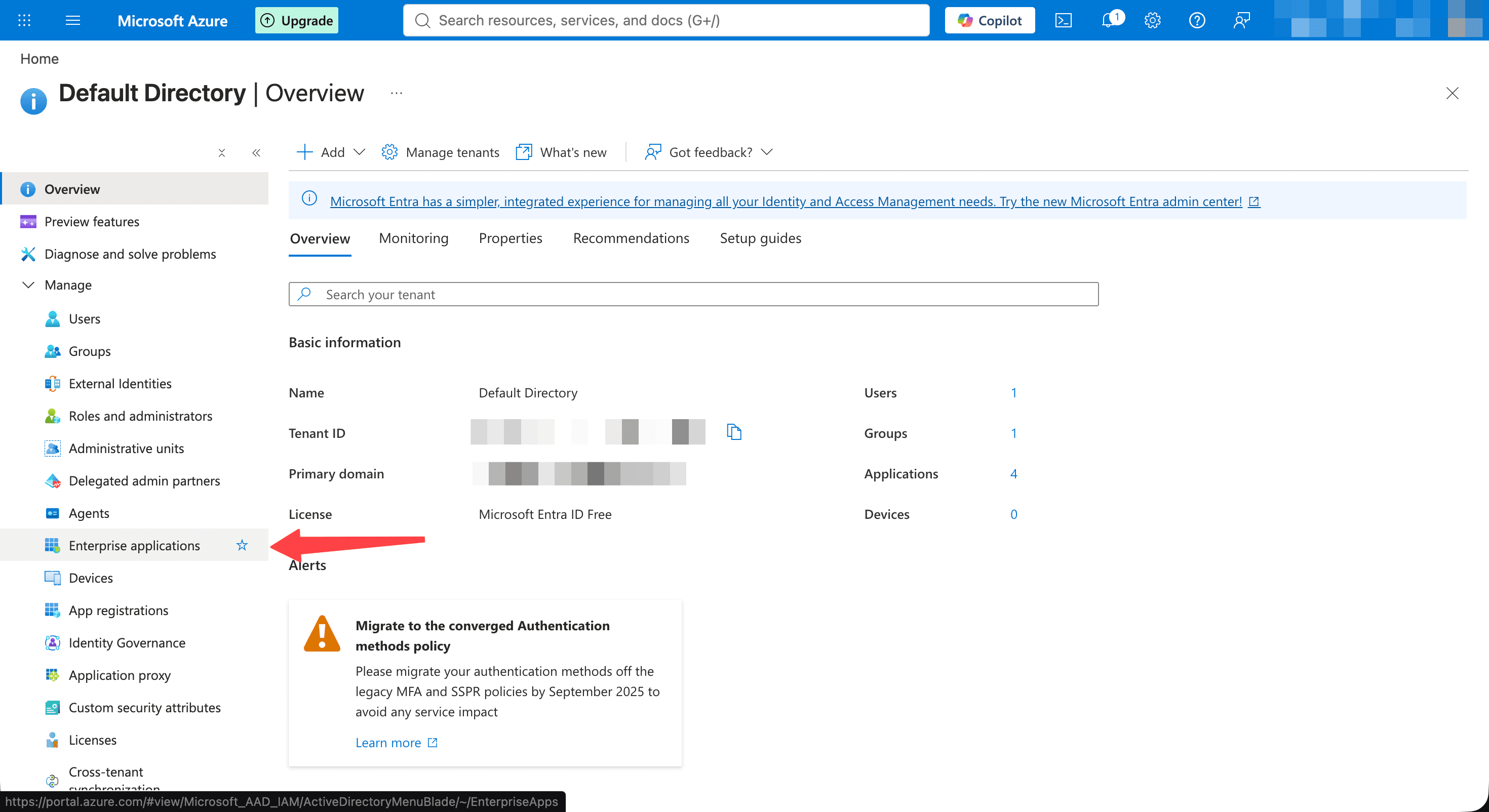

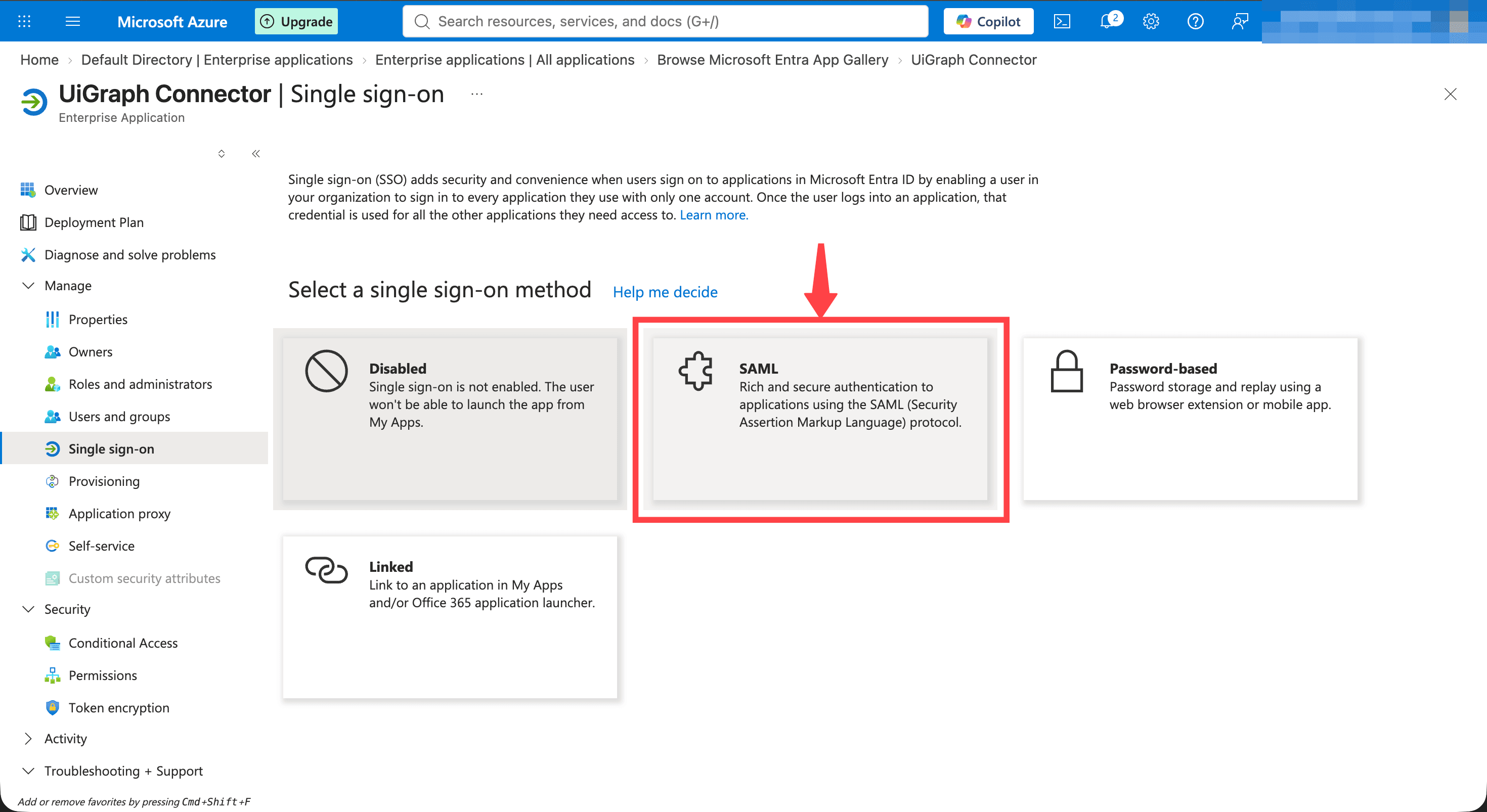

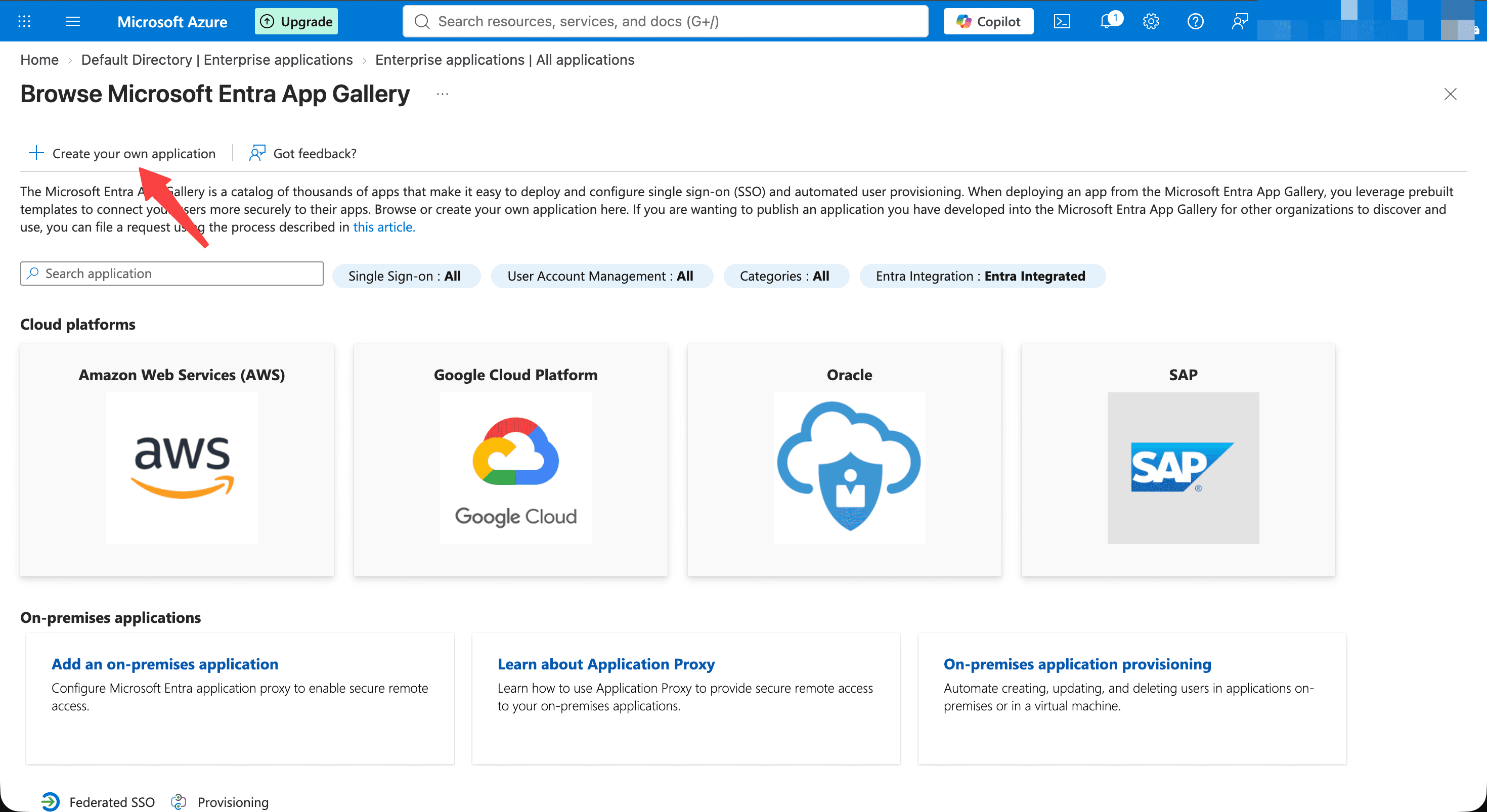

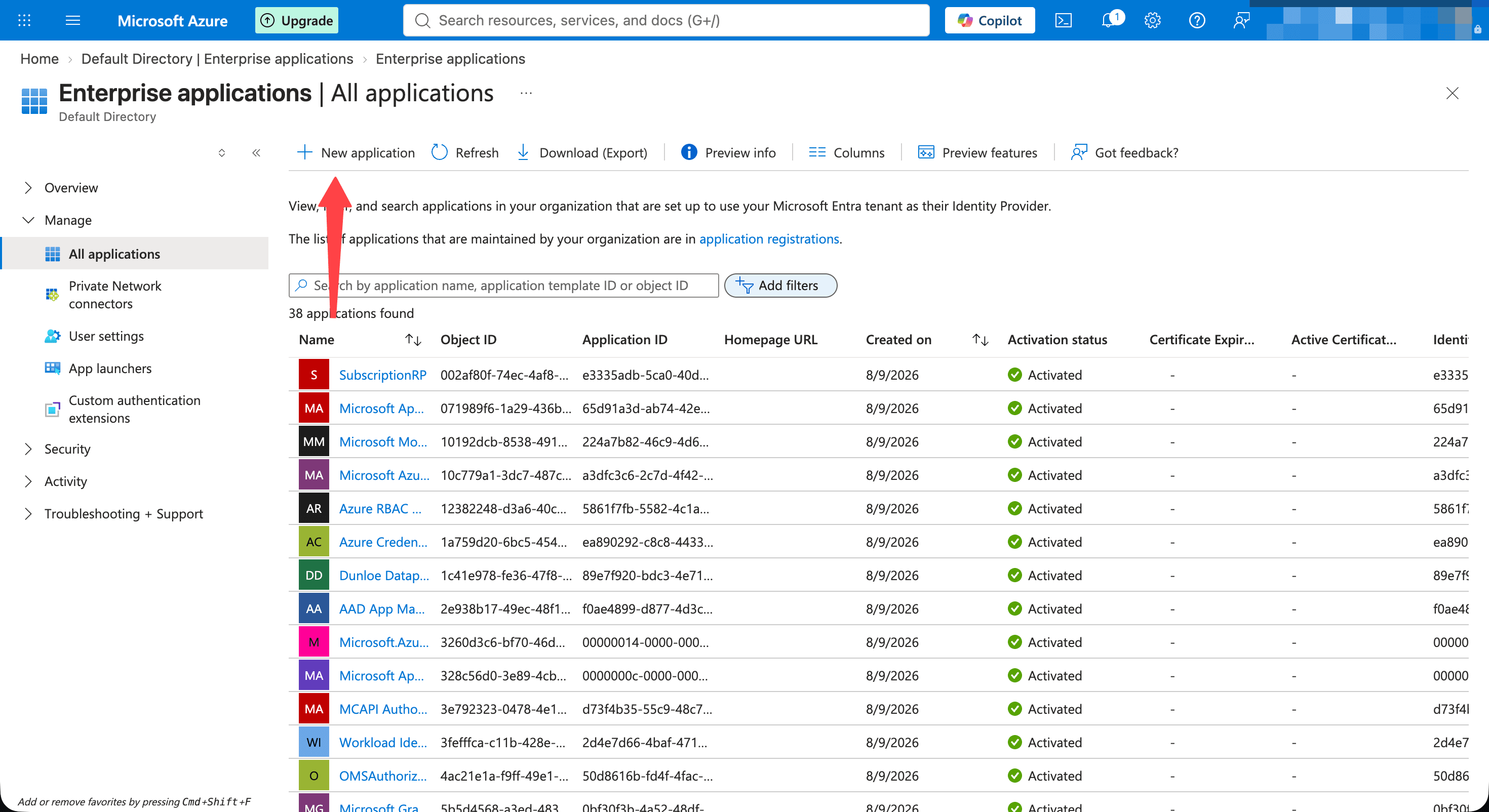

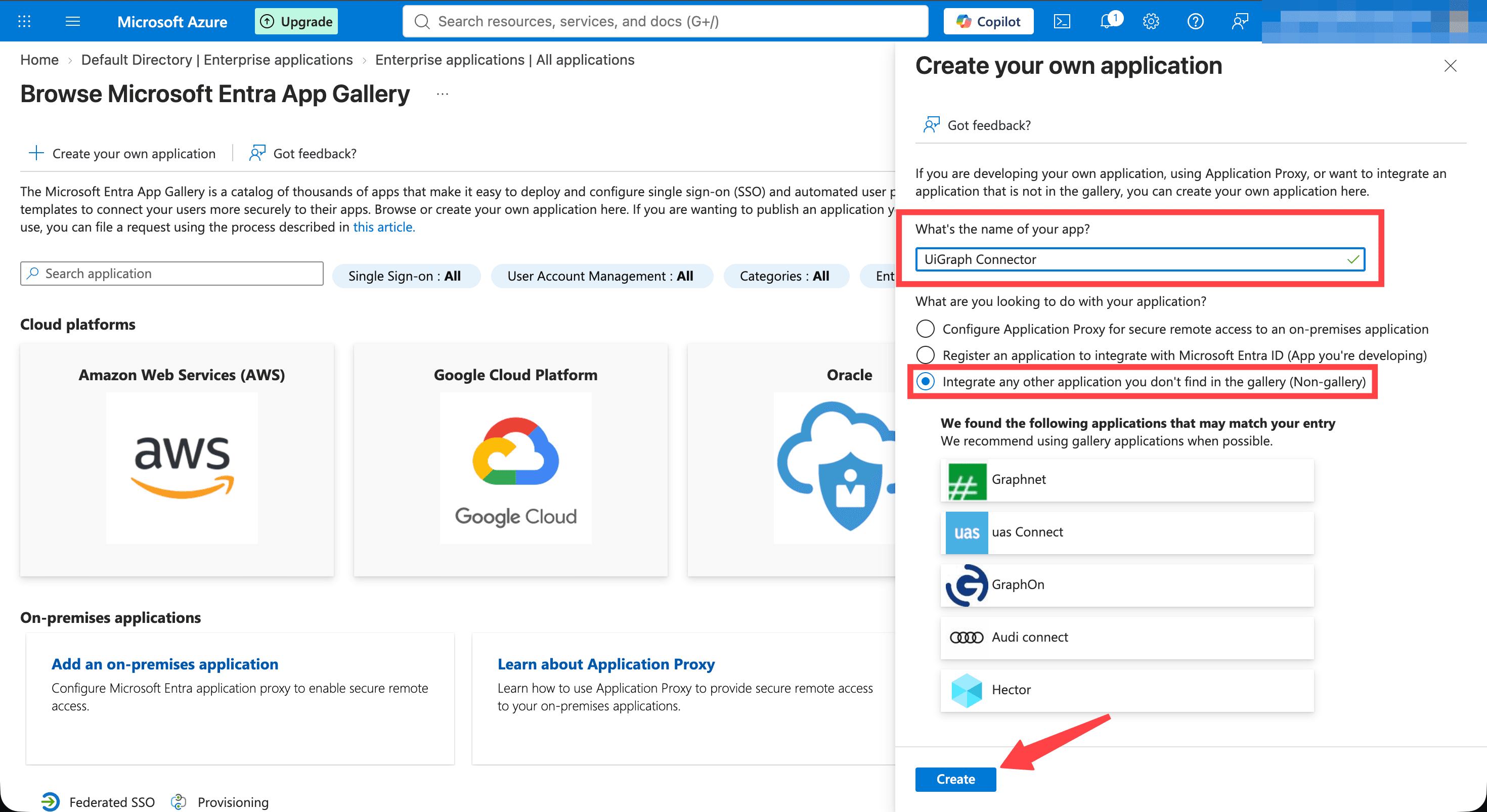

1. Create a SAML 2.0 web application.

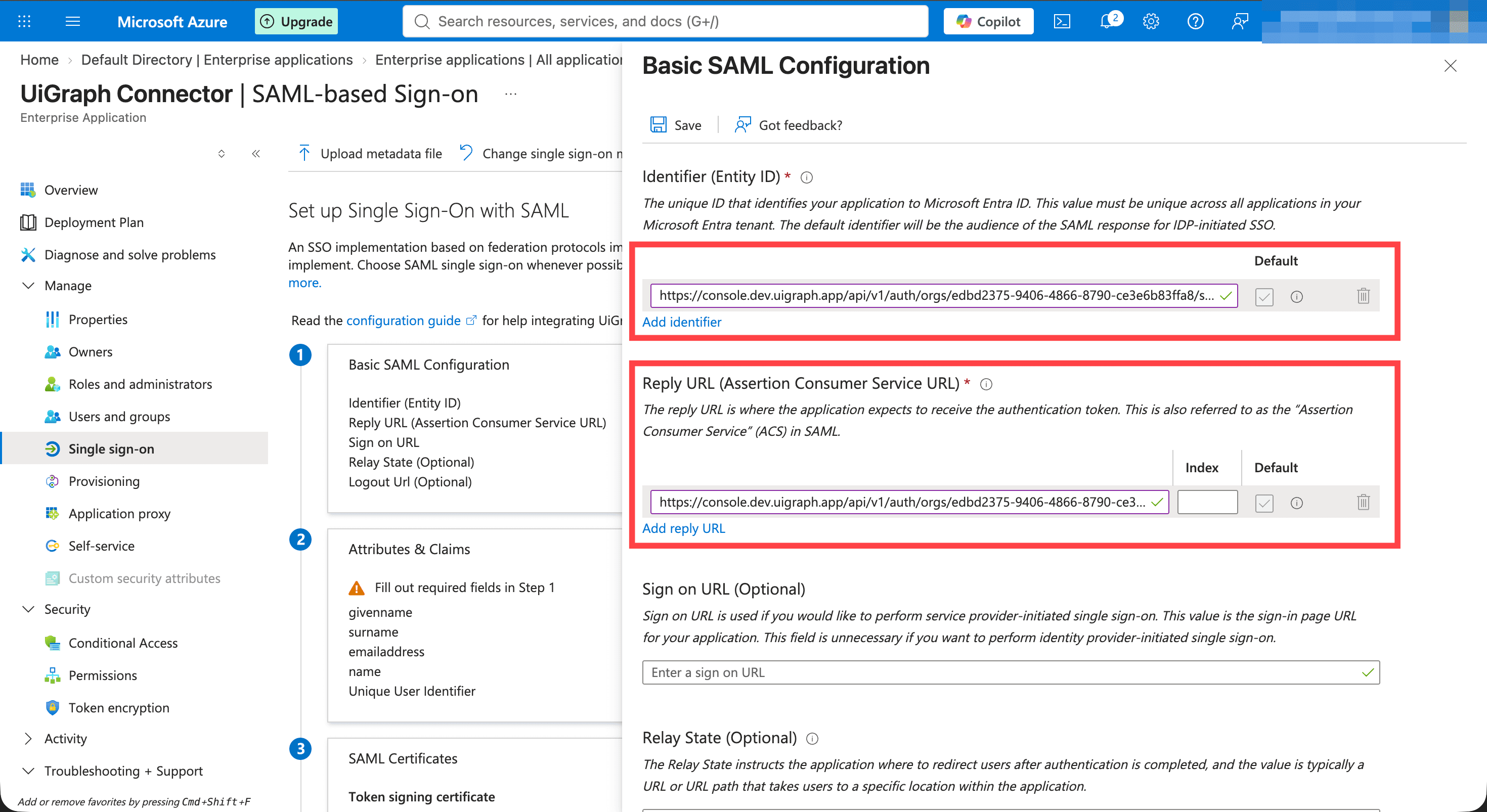

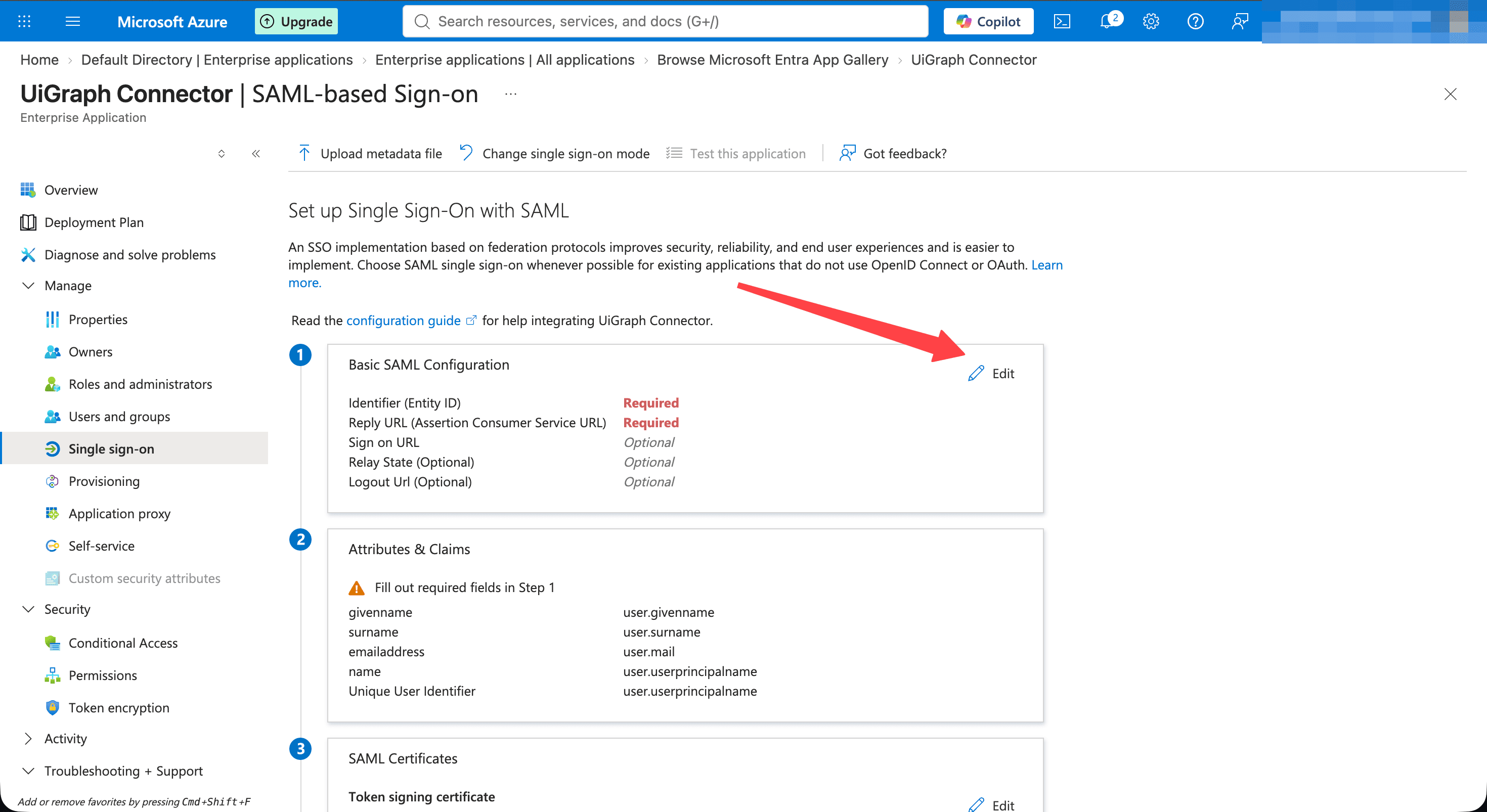

2. Copy the UIGraph entity ID into the IdP's audience or identifier field.
3. Copy the UIGraph ACS URL into the reply or consumer URL field.
4. Configure the IdP to sign SAML assertions or responses.
5. Assign the test user to the application.

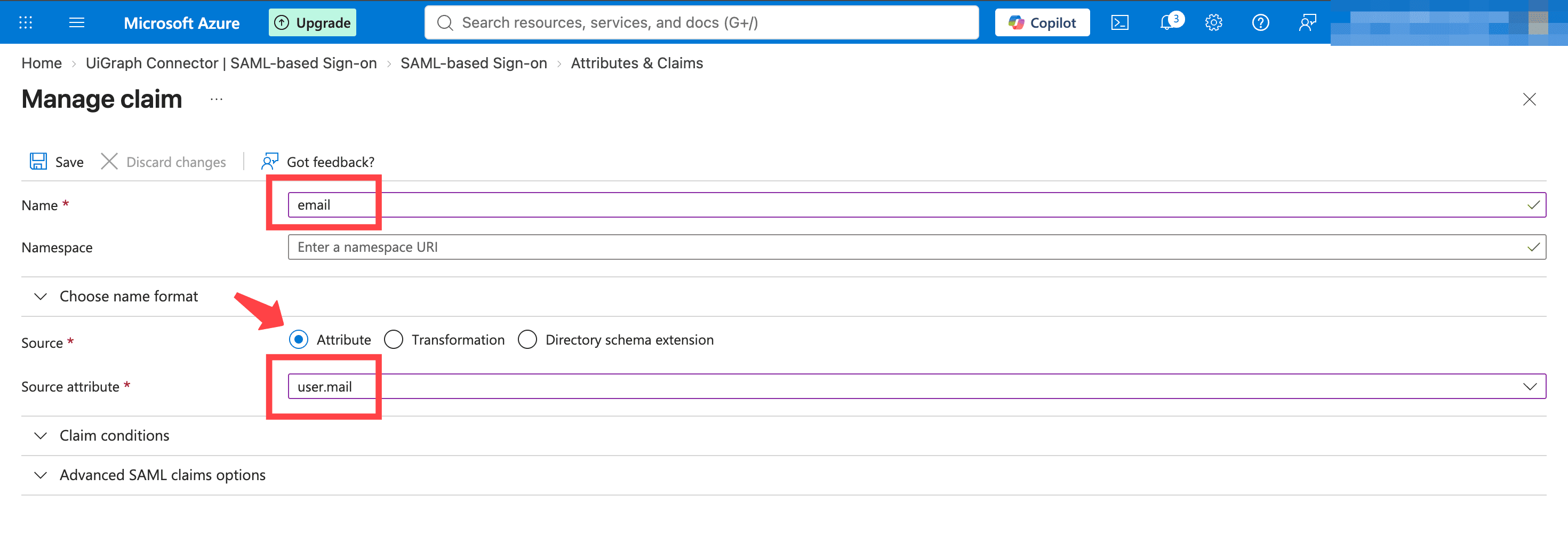

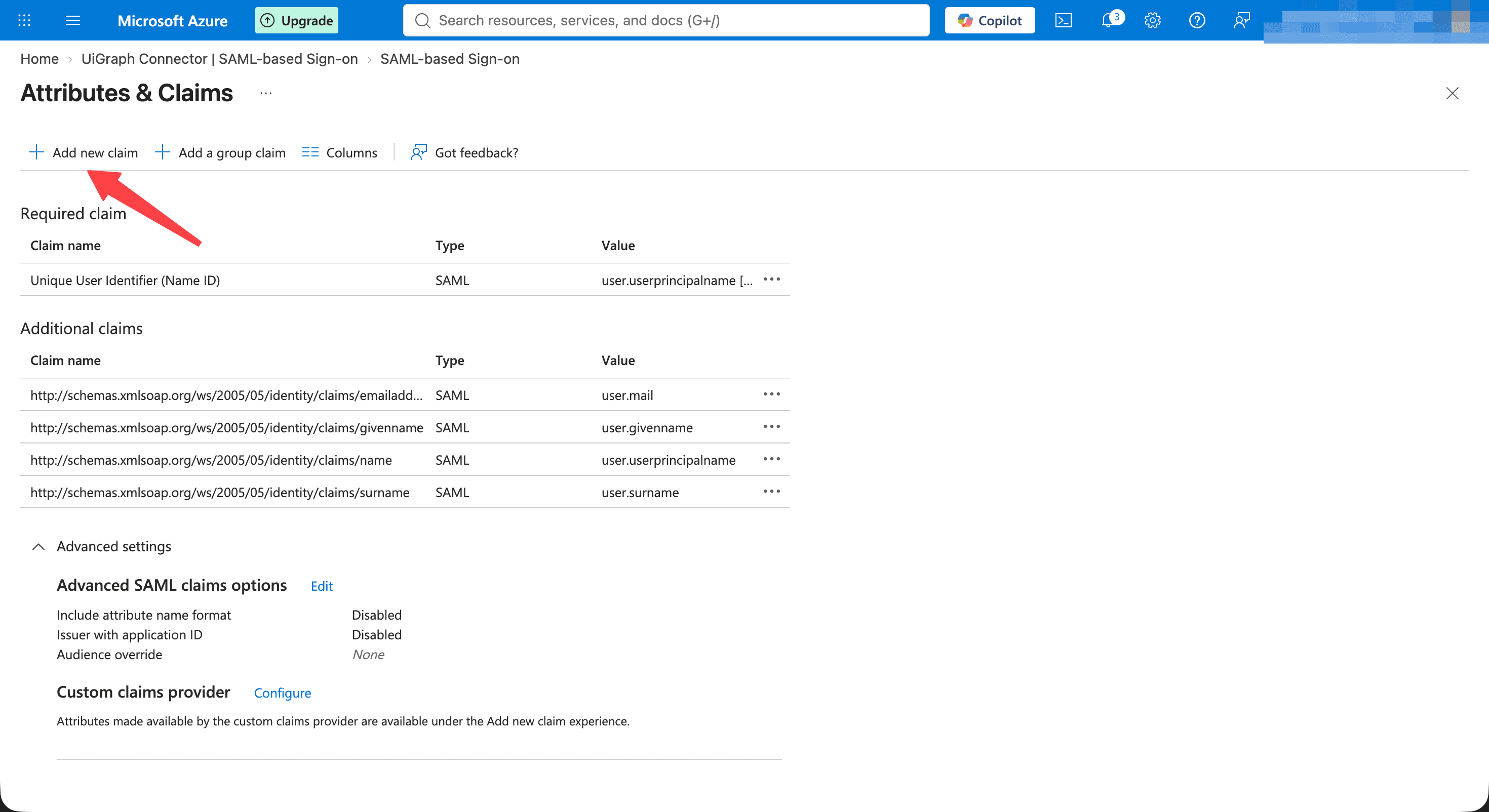

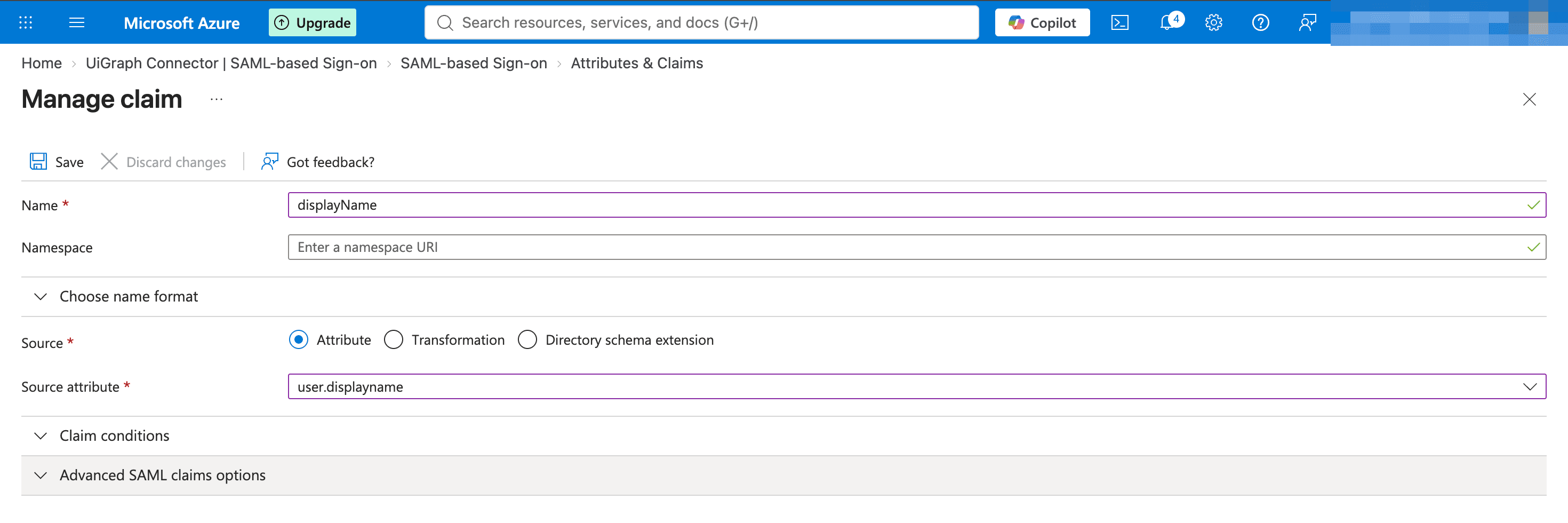

6. Configure the email, display name, and optional group attributes.
7. Export the IdP metadata URL or metadata XML.

UIGraph requires a signing certificate and an HTTP-Redirect SSO endpoint. Metadata that exposes only another SSO binding cannot be imported automatically.

Import IdP metadata

The simplest configuration is one of:

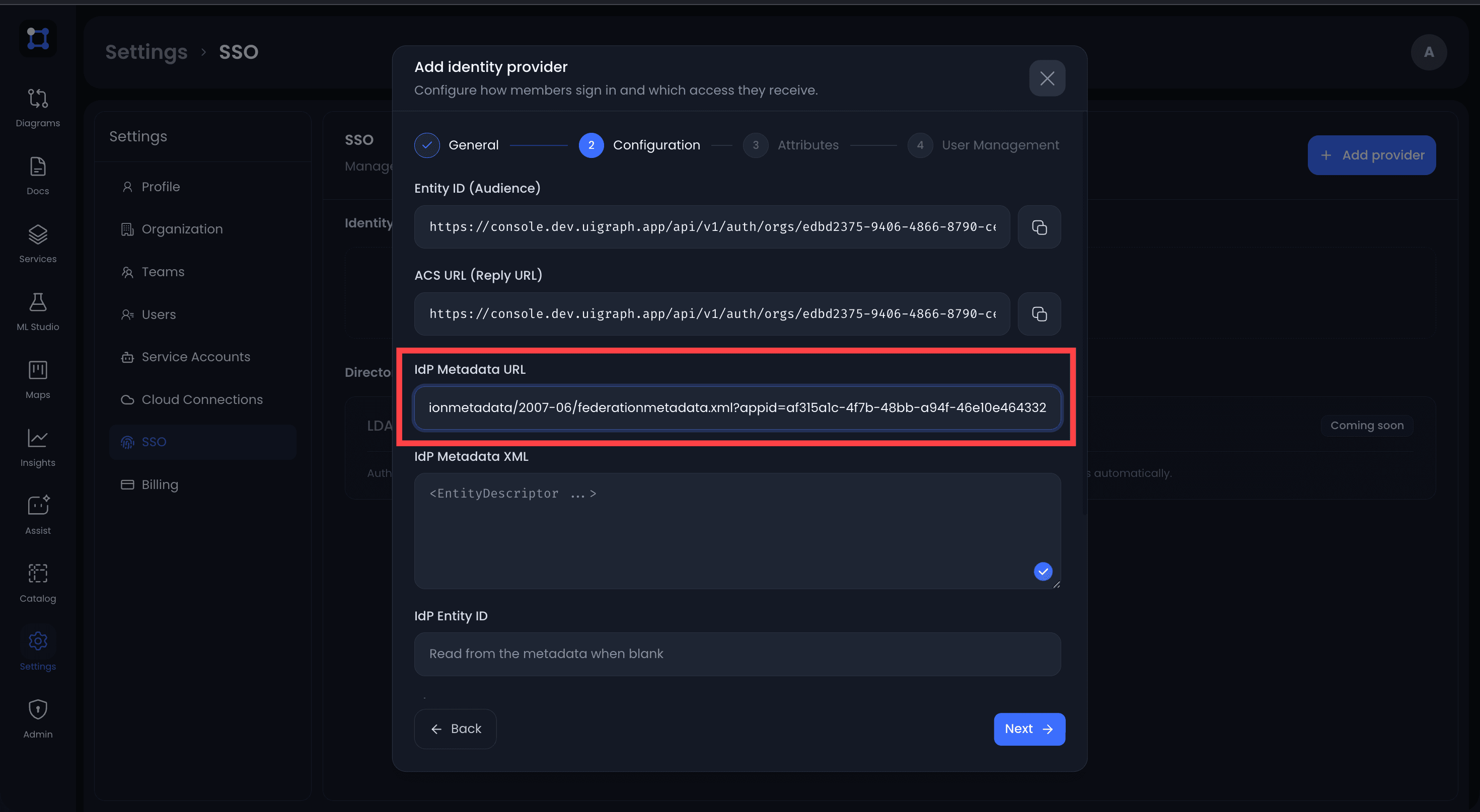

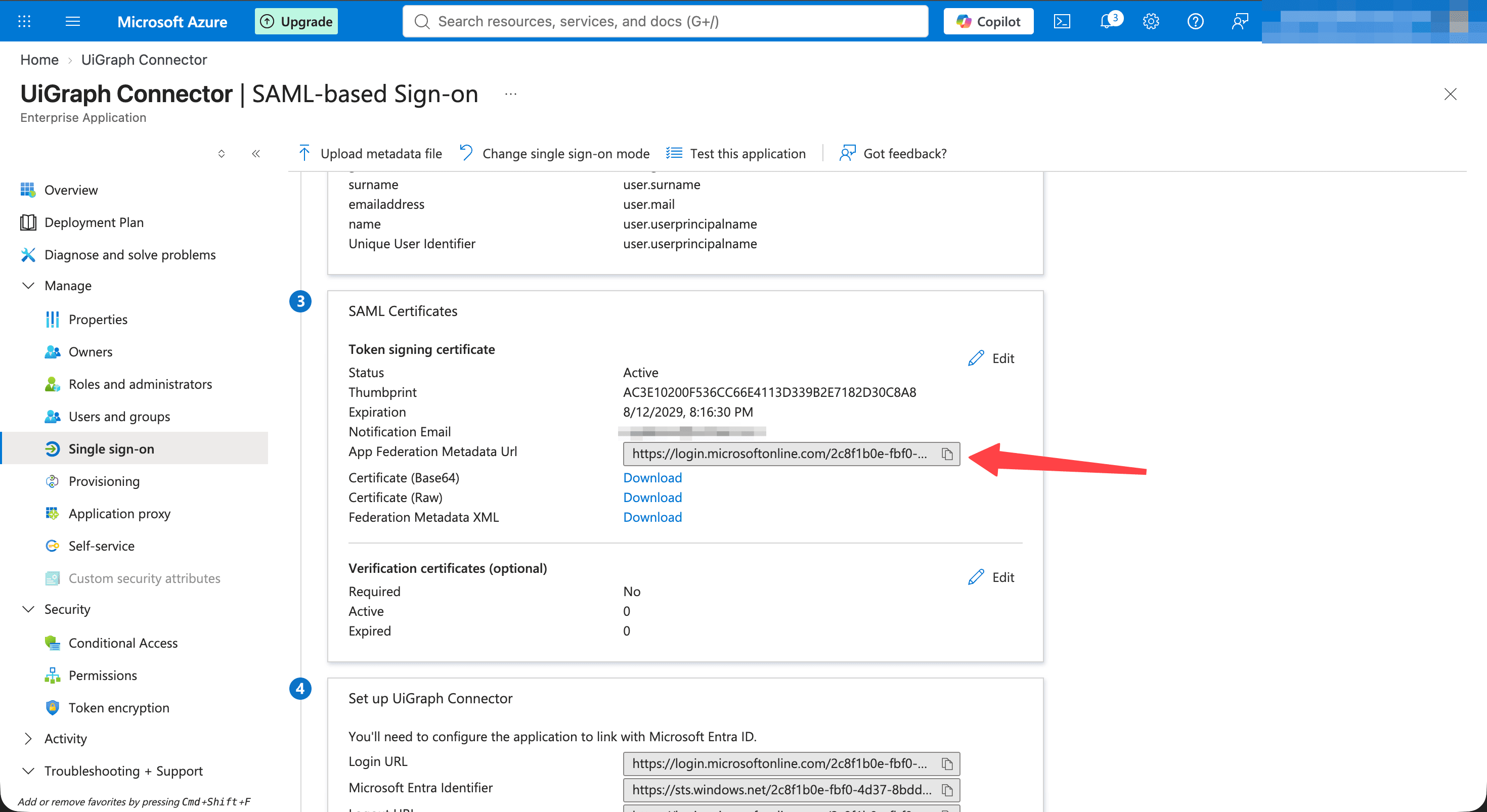

• IdP Metadata URL: UIGraph downloads and parses the metadata when the provider is saved.
• IdP Metadata XML: paste the complete metadata document.

UIGraph reads the IdP entity ID, first HTTP-Redirect SSO URL, and signing certificate from the metadata. Explicit values entered in the form take precedence over imported values.

Alternatively, configure the following fields manually:

Field	Required behavior
IdP Entity ID	Identifies the IdP. Usually imported from metadata.
IdP SSO URL	Destination for HTTP-Redirect AuthnRequests.
IdP Signing Certificate	PEM certificate or base64-encoded certificate used to verify responses.

Multiple PEM certificates can be supplied when an IdP publishes overlapping certificates during rotation.

Remote metadata

An IdP metadata URL is fetched by the UIGraph API. Use an HTTPS endpoint controlled by your identity provider. Metadata is parsed when the provider is saved; do not assume later IdP metadata changes are applied automatically without saving the provider again.

Configure attributes

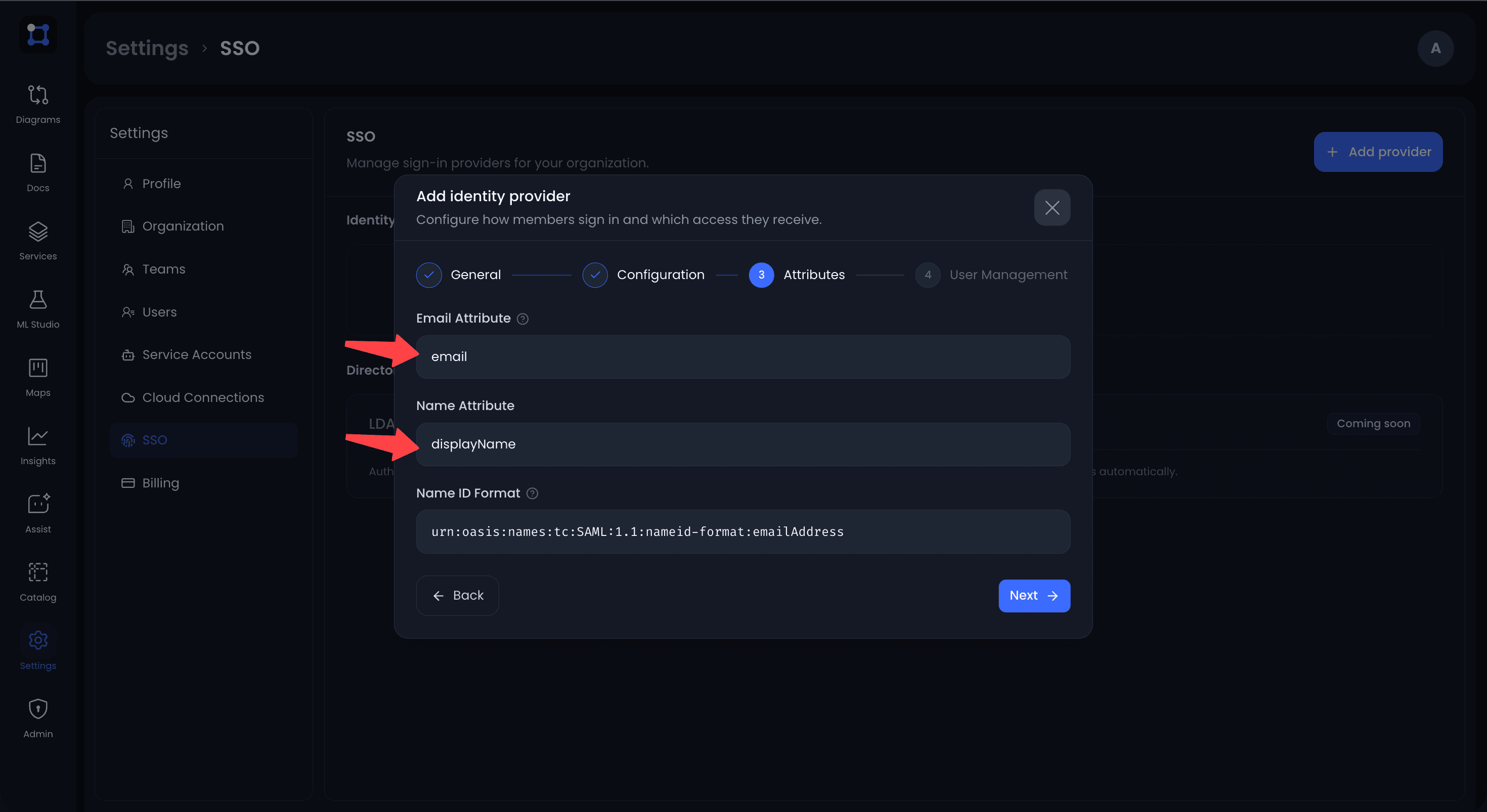

Open the provider's Attributes tab.

Setting	Default	Purpose
Email Attribute	email	Account email. Login fails if the configured attribute is absent.
Name Attribute	displayName	Display name. UIGraph falls back to the email when absent.
Name ID Format	urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress	Format requested in the AuthnRequest.
Groups Attribute	groups	Suggested attribute for role mapping rules.

When Email Attribute is empty, UIGraph uses the assertion's NameID as the email. When it is configured, the named attribute is required.

The SAML NameID is stored as the provider subject identity when available. UIGraph still locates and creates user accounts by normalized email during login.

UIGraph makes SAML attributes available to role mapping rules under both their canonical names and friendly names when supplied by the IdP.

Signed AuthnRequests

Enable Sign authentication requests only when the IdP requires signed requests.

UIGraph generates an RSA-2048 SP keypair and a self-signed SP certificate. The private key is encrypted in the database with the API's master secret key. AuthnRequests are signed with RSA-SHA256.

If the IdP needs the SP certificate, import it from the UIGraph SP metadata document.

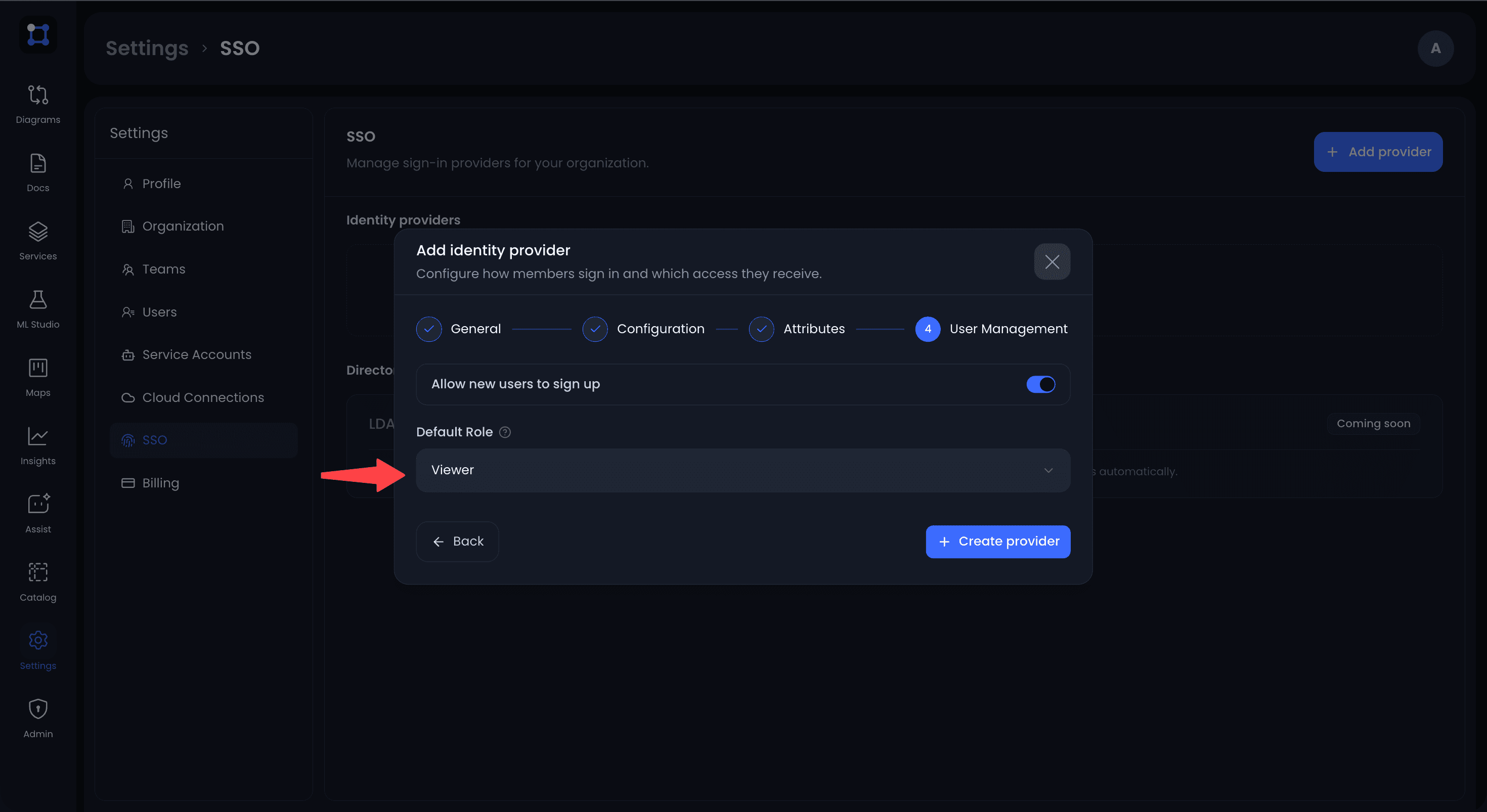

Configure users and roles

Open the provider's Users tab:

• Enable Allow new users to sign up to create accounts on first successful login.
• Select the default organization role: viewer, editor, or admin.
• Add ordered role mapping rules for groups or other SAML attributes.

Rules are evaluated from top to bottom and the first match wins. See Provisioning, Domains & Roles for operators and lifecycle behavior.

Test the provider

1. Keep the provider enabled and save all changes.
2. Open a private browser window.
3. Enter the test user's email on the UIGraph sign-in screen.
4. Select the organization and then the SAML provider.
5. Authenticate at the IdP.
6. Confirm that the user returns to UIGraph with the expected organization role.

If the organization does not appear after entering the email, the user must already be a member or the organization must have a matching discovery domain. Domain management is currently available through the API but not the SSO settings page.

Validation performed by UIGraph

For a login initiated by UIGraph, the ACS validates:

• The response signature against the configured IdP certificate.
• The expected audience/entity ID.
• The ACS recipient and destination constraints enforced by the SAML library.
• Assertion time constraints.
• The response's relationship to the stored AuthnRequest ID.
• The one-time RelayState and its 10-minute expiry.
• The presence of a NameID.

Encrypted assertions are supported when they target the SP key contained in UIGraph metadata.

Unsupported SAML behavior

• IdP-initiated login is not supported because UIGraph requires a stored RelayState and AuthnRequest ID.
• SAML Single Logout is not supported.
• IdP session termination does not revoke an existing UIGraph session.
• Automatic metadata refresh and certificate rollover scheduling are not provided.

Troubleshooting

Symptom	Check
Organization does not appear	Add a matching organization discovery domain or pre-create the user's membership.
Provider button does not appear	Confirm the provider is enabled and belongs to the selected organization.
no pending authn request	Start login from UIGraph; IdP-initiated responses are unsupported.
Invalid RelayState or request	The one-time state may have expired, been reused, or belong to another provider. Restart login.
Audience or recipient validation fails	Copy the generated entity ID and ACS URL exactly, including scheme, host, organization ID, and slug.
Signature validation fails	Refresh the IdP metadata or certificate, especially after certificate rotation.
Configured email attribute was not returned	Add the exact attribute to the IdP assertion or clear the field to use NameID.
User receives 403 Forbidden	Check allowed domains, Allow new users to sign up, and whether the UIGraph account is disabled.
User receives the wrong role	Check rule order, attribute spelling and values, then the default role.
Redirect uses the wrong host	Correct UIGRAPH_PUBLIC_URL and update the IdP application with the regenerated URLs.
